40-48 Mpa High Pressure Cement Grouting Pump
Product Details
48 Mpa High Pressure Cement Grouting Pump
,40 Mpa High Pressure Cement Grouting Pump
,55kw high pressure grouting pump
Use Friendly Cement Slurry High Pressure Grouting Pump Large Output
Cement Slurry High Pressure Grouting Pump
Characteristics and Application Range of High Pressure Grouting Pump:
1. This series of high-pressure grouting pumps is a light high-pressure grouting pump which is well developed to adapt to the growing high-pressure grouting technology.
2. High Pressure Grouting Pump, it can pump fresh water, high density cement slurry and other media of the latest generation of products, equipped with speed control mechanism, can be used as variable displacement pumps.
3. It has the characteristics of reasonable parameters, advanced technology, reliable quality, excellent performance and beautiful appearance.
4. This series of high pressure pumps can be used in the following fields soft foundation treatment, high pressure jet grouting; High pressure water jet assisted rock breaking and coal caving; Hydraulic prop fluid supply in coal mine;
5. The anchorage pumps high-pressure water with hydraulic expansion metal rod-laying.
6. Silt Cleaning and Cleaning of Large Underground Pipelines chemical pump; High-pressure water jet drilling through holes horizontally; Pumps for other purposes of grouting.
Parameters of High Pressure Grouting Pump:
| Type | TY55K | TY90k |
| Motor power | 55kw | 90kw |
| Type of motor | YE2VP280M-6 | YE2VP280M-4 |
| Function form | Horizontal reciprocating single acting plunger | Horizontal reciprocating single acting plunger |
| Plunger quantity | 3 | 3 |
| Plunger diameter | 50mm | 50 mm |
| Working stroke | 100 mm | 100 mm |
| Input speed | 390～900 R/min | 590～1330 R/min |
| Discharge volume | 32～75 L/min | 50～110 L/min |
| Working pressure | 40-48 Mpa | 33 Mpa |
| Suction pipe diameter | 64 mm | 64 mm |
| Discharge pipe diameter | 19 mm | 19 mm |

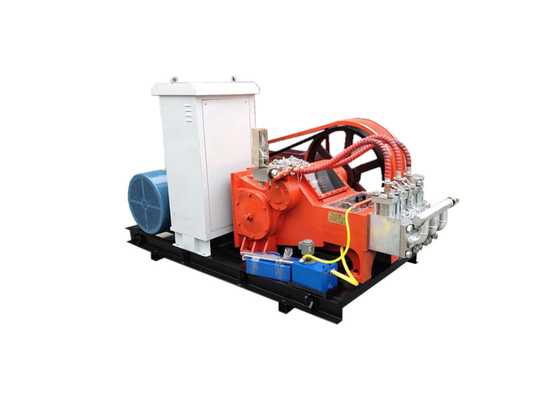

Pictures of High Pressure Grouting Pump:
-
