|Place of Origin:||China|
|Certification:||CE, ISO, SGS|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case package|
|Delivery Time:||3-5 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||120 sets per month|
|Name:||Electric Grout Pump||Color Choose:||Customized|
|Plot Ratio(%):||90||Intake Pipe Diameter:||64 Mm|
|Discharge Pipe Diameter:||32 Mm||Cylinder Number:||Three- Cylinder|

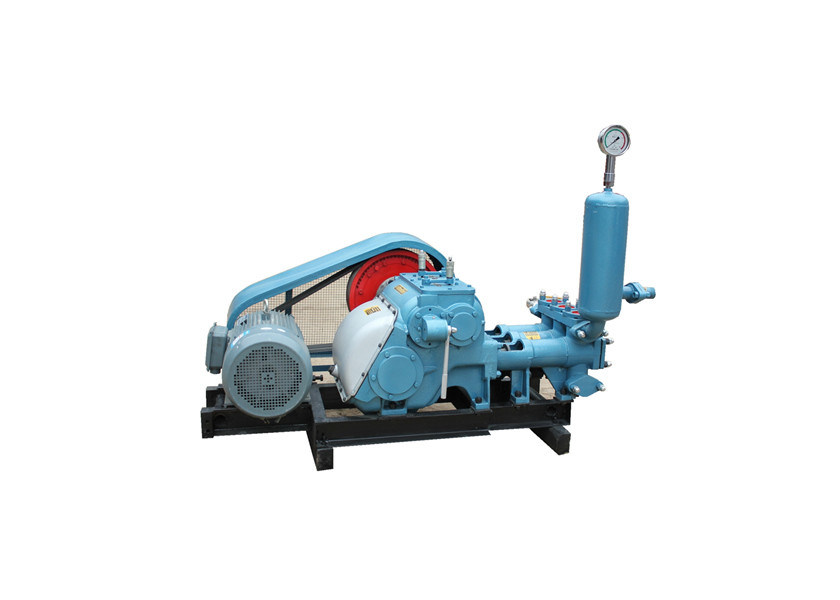

Electric Grout Pump
Description of Electric Grout Pump:
Electric grout pump can be used as a cement grouting pump in foundation treatment engineering. The cement ratio of cement slurry can reach 1:1, and it has small size, compact structure, and can prevent collapse. It is easy to install, disassemble and carry. The electric grout pump can be used as a matching equipment for 1000m large diameter drilling rig with four-step displacement.
Technical parameters of Electric Grout Pump:
|Diameter of suction pipe||64mm|
|Diameter of outlet pipe||32mm|
|Main shaft speed||1450 r/min|
|Working pressure||6 Mpa|
Structure of Electric Grout Pump:
Electric Grout Pump is mainly composed of pump body, pump frame, air chamber, shock-resistant pressure gauge, motor, V-belt and pulley cover.
The installation foundation of cement grouting pump should be smooth and not inclined.
The pump is fixed on the foundation with the foot screw to prevent the vibration of the pump during operation.
Preparations before pumping:
After the pump has been stopped or reinstalled for a long time, the following preparations must be made before starting.
1. Check whether there is enough lubricating oil in each part.
2. Check whether the suction pipe of the filter is unblocked.
3. Check whether there is obstruction in the movement of each part.
4. Check the accuracy and reliability of the transmission mechanism.
5. Check the looseness of fasteners, especially the screw tightening of rubber piston locking nut, cross head and piston rod connection thread.
6. Check the suction height of the pump. The maximum suction height of the pump should not exceed 2.5 meters in areas below 1000 meters above sea level. In areas above 1000 meters above sea level, the suction height of the pump should be reduced according to the local atmospheric pressure reduction.
7.Check the position of the filter immersed in the mud tank. Generally, the mud level should be below 0.3-0.5 meters, and the filter should be no less than 0.5 meters away from the bottom of the mud tank.
