Red 200m 250m Portable Hydraulic Water Well Drilling Rig Borehole Machine
Product Details

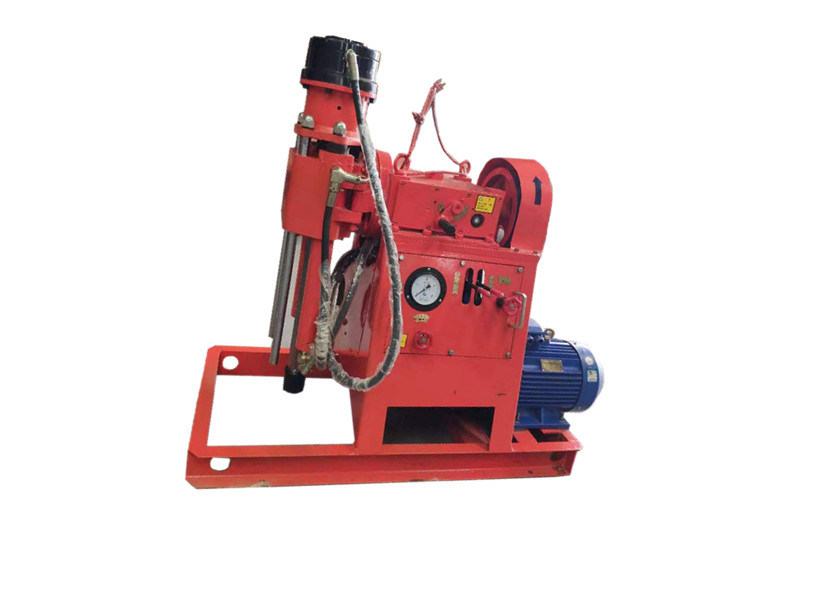

200m Portable Hydraulic Water Well Drilling Rig
,250m Portable Hydraulic Water Well Drilling Rig
,red 200m Borehole Machine
Pneumatic Stable Steel Crawler Hydraulic Drilling Machine Electric Power
Hydraulic Drilling Machine
Main Features of hydraulic drilling machine:
1. the track is convenient to move and high efficiency;
2. large aperture, fast speed, a single day drilling up to 400-600 meters
3. can be applied to different geological structure, easy to operate;
4. can be lifted to 3.3 meters at high speed, and can double row drilling;
5. drilling depth up to 30 meters;
6. with twist drill pipe dry operation
7. can play vertical hole micro column
Parameters of hydraulic drilling machine:
| Model | ZLJ-350 | ZLJ-400 | ZLJ-700 |
| drill pipe dia. | 42mm | 42mm | 42-50mm |
| drill hole depth | 75-100m | 150-200m | 200-250m |
| Vertical spindle speed | 120/205/363 r/min | 120/214/375 r/min | 123/219/385 r/min |
| Vertical stroke | 400mm | 400mm | 400mm |
| Motor power | 5.5 kw | 7.5 kw | 11 kw |
Features of Hydraulic Drilling Machine:
1. mechanical transmission, hydraulic feed, the output efficiency of the whole machine is more than 95%;
2. compact structure, reasonable connection design, can be divided into motor, rotary, gear box winch, frame control mechanism four parts, simple disassembly, convenient assembly;
3. hydraulic chuck design, simple operation can achieve easy conversion of 360 degrees drilling.
-
