Piston Cement Pressure Grouting Machine Single Cylinder Small Grout Pump

Name: Piston Cement Pressure Grouting Machine Single Cylinder Small Grout Pump
Brand: Beijing Silk Road Enterprise Management Services Co., Ltd.
SKU: BW50-5
Availability: InStock

Basic Properties

Place of Origin: China

Brand Name: Silk

Certification: CE, ISO, SGS

Model Number: BW50-5

Trading Properties

Minimum Order Quantity: 1 set

Price: Negotiable

Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability: 120 sets per month

Sodium Silicate Cement Grout Pump

Single cylinder piston type Pressure Grouting Machine small type Pressure Grouting Machine Work Preparation of Pressure Grouting Machine: After the pump has been stopped or reinstalled for a long time, the following preparations must be made before starting. 1. Check the sufficiency of lubricating ...

Product Details

Highlight:

Piston Cement Pressure Grouting Machine

,

Single Cylinder piston grout pump

,

Piston Small Grout Pump

Name: Pressure Grouting Machine

Working Motor Power: 5.5 KW

Rated Pressure: 5 Mpa

Suction Pipe Diameter: 51 Mm

Out Let Pipe Diameter: 32 Mm

Model: BW50-5

Cylinder Diameter: 80 Mm

Piston Stroke: 90 Mm

Product Description

Single cylinder piston type Pressure Grouting Machine small type

Pressure Grouting Machine

Work Preparation of Pressure Grouting Machine:

After the pump has been stopped or reinstalled for a long time, the following preparations must be made before starting.

1. Check the sufficiency of lubricating oil in the gearbox (lubricating oil should be injected into the gearbox to the viewing hole of the oil window when it is first used).

2. Check the fastening and loosening of all parts, especially the screw tightening of rubber piston locking nut, cross head and tie rod. Whether the moving parts are blocked or not, and whether the rotation is flexible.

3. Check whether the filter, suction pipe and discharge pipe are unblocked.

4. Check whether the joints of the pipelines are firm and tight, whether there is leakage or leakage.

Technical parameters of Pressure Grouting Machine:

Cylinder number	1
Bore diameter	80mm
Piston stroke	90mm
Diameter of suction pipe	51mm
Diameter of outlet pipe	32mm
Motor power	5.5 kw
Main shaft speed	1440 r/min
Working pressure	5 Mpa

Structure of Pressure Grouting Pump:

Chemical Grout Injection Pump is mainly composed of pump body, pump frame, air chamber, shock-resistant pressure gauge, motor, V-belt and pulley cover.

The installation foundation of cement grouting pump should be smooth and not inclined.
The pump is fixed on the foundation with the foot screw to prevent the vibration of the pump during operation.

Preparations before pumping of Pressure Grouting Pump:

After the pump has been stopped or reinstalled for a long time, the following preparations must be made before starting.
1. Check whether there is enough lubricating oil in each part.
2. Check whether the suction pipe of the filter is unblocked.
3. Check whether there is obstruction in the movement of each part.
4. Check the accuracy and reliability of the transmission mechanism.
5. Check the looseness of fasteners, especially the screw tightening of rubber piston locking nut, cross head and piston rod connection thread.
6. Check the suction height of the pump. The maximum suction height of the pump should not exceed 2.5 meters in areas below 1000 meters above sea level. In areas above 1000 meters above sea level, the suction height of the pump should be reduced according to the local atmospheric pressure reduction.
7.Check the position of the filter immersed in the mud tank. Generally, the mud level should be below 0.3-0.5 meters, and the filter should be no less than 0.5 meters away from the bottom of the mud tank.

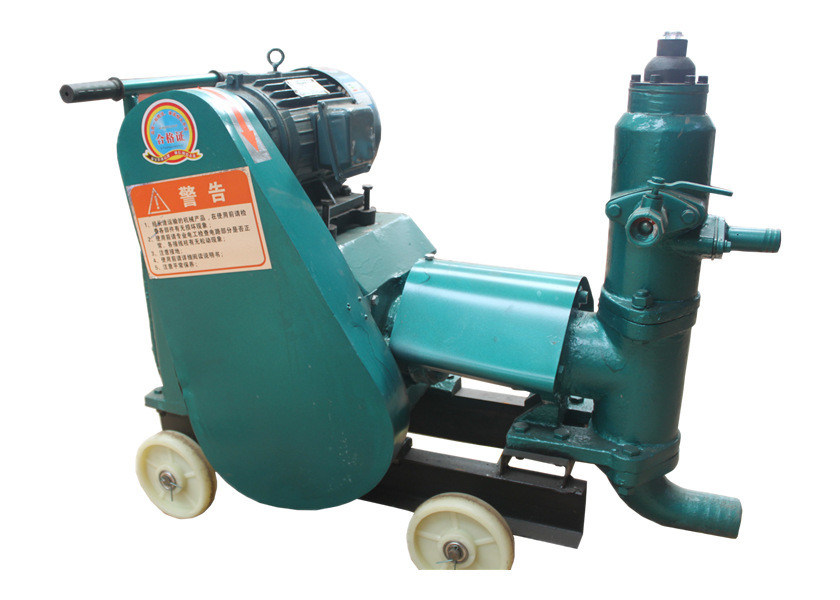

Pictures of Pressure Grouting Pump:

Piston Cement Pressure Grouting Machine Single Cylinder Small Grout Pump 0
