|Place of Origin:||China|
|Certification:||CE, ISO, SGS|
|Minimum Order Quantity:||1 set|
|Packaging Details:||Wooden case package|
|Delivery Time:||3-5 working days|
|Payment Terms:||L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Supply Ability:||120 sets per month|
|Name:||Injection Grouting Machine Price||Rated Power:||5.5KW|
|Cylinder Number:||1 Cylinder||Gross Weight:||200 Kg|
|Capacity:||3 M³/h||Material:||Carbon Steel|
|Guarantee:||1 Year||After-sales Service:||Provide|
5.5KW Cement Grout Injection Pump,
Low Loss Injection Grouting Pump,
Green 5.5KW Grout Injection Pump
Energy Consumption Low Loss Injection Grouting Machine Price Movable
Injection Grouting Machine Price
Description of Injection Grouting Machine Price:
Bw50-5 is the connecting rod of diesel engine. BW series single cylinder grouting pump is mainly composed of motor, gearbox, pump head, frame, guard, v-belt transmission mechanism parts, such as gearbox for closed shell, each moving parts adopt splash lubrication way lubrication, gear meshing of a set of mutually the rotary motion of the motor can be sent to the crankshaft, connecting rod, crosshead make piston reciprocating motion.
Technical Parameters of Injection Grouting Machine Price:
|Diameter of suction pipe||51mm|
|Diameter of outlet pipe||32mm|
|Motor power||5.5 kw|
|Main shaft speed||1440 r/min|
|Working pressure||5 Mpa|
Structure of Injection Grouting Machine Price:
Injection grouting machine price is mainly composed of pump body, pump frame, air chamber, shock-resistant pressure gauge, motor, V-belt and pulley cover.
The installation foundation of cement grouting pump should be smooth and not inclined.
The pump is fixed on the foundation with the foot screw to prevent the vibration of the pump during operation.
Preparations before pumping of Injection Grouting Machine Price:
After the pump has been stopped or reinstalled for a long time, the following preparations must be made before starting.
1. Check whether there is enough lubricating oil in each part.
2. Check whether the suction pipe of the filter is unblocked.
3. Check whether there is obstruction in the movement of each part.
4. Check the accuracy and reliability of the transmission mechanism.
5. Check the looseness of fasteners, especially the screw tightening of rubber piston locking nut, cross head and piston rod connection thread.
6. Check the suction height of the pump. The maximum suction height of the pump should not exceed 2.5 meters in areas below 1000 meters above sea level. In areas above 1000 meters above sea level, the suction height of the pump should be reduced according to the local atmospheric pressure reduction.
7.Check the position of the filter immersed in the mud tank. Generally, the mud level should be below 0.3-0.5 meters, and the filter should be no less than 0.5 meters away from the bottom of the mud tank.

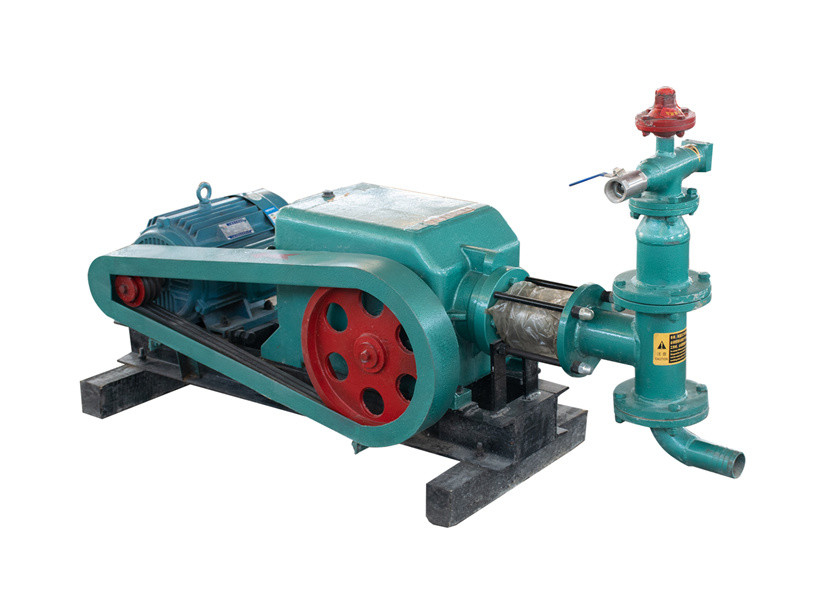

Pictures of Injection Grouting Machine Price:
