4Kw Screw Grout Pump Variable Pressure 2000-2500L/H Output
Product Details
Variable Pressure Screw Grout Pump
,4Kw Screw Grout Pump
,2500L/H Pressure Grouting pump
Flow Stability Variable pressure Screw Grouting Machine foundation grout
Screw Grouting Machine
Structure of Screw Grouting Machine:
Electrical system
The electrical system is composed of electric control box, circuit breaker, button switch, voltage, power indicator, AC contactor and wiring terminal. Rated working voltage 380V, after connecting the three-phase power supply line, the circuit breaker, power supply and voltage indicator light will light up and display the current voltage value, according to the corresponding grouting, pressure relief, stop, press the button to operate the grouting pump. The grouting button is the interlock switch, and the grouting operation can be carried out after pressing it. The pressure relief button is the point switch, normally open type, and only by pressing this switch often, the motor can reverse the pressure relief operation (note: the pressure relief cannot be carried out for a long time).
Parameters of Screw Grouting Machine:
| Model | LBT2000 |
| Output | 2000-2500 L/H |
| Motor power | 4 kw |
| Sand particle size | ≤ 4 mm |
| Pressure | 2-4 Mpa(adjustable) |
| Hopper | 150 L |
Safety Precautions of Screw Grouting Machine:
1. During construction, the slurry pump and grouting hose should be fixed, and the grouting hose should be in a relaxed state;
2. After grouting, it is necessary to clean the slurry pump and grouting hose in time, and the switch is in the stop position, in time
3. At any time can not put the hand into the hopper or hard things into the conveyor screw operation;
4. Pay attention to environmental safety.

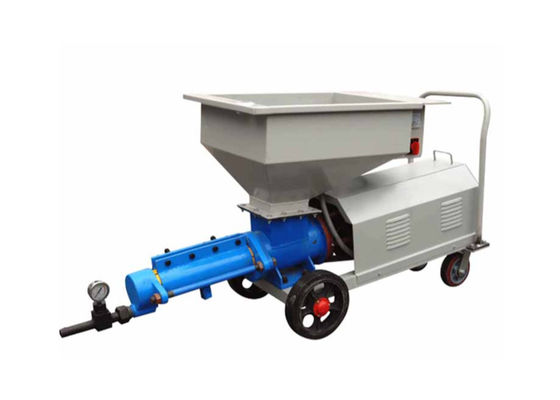

Pictures of Screw Grouting Machine:
-
