Culvert 15kw Mobile Mix Concrete Delivery And Pumping Concrete Pump Mobile
Product Details
Culvert Mobile Mix Concrete Delivery And Pumping
,15kw Mobile Mix Concrete Delivery And Pumping
,Culvert 15kw Concrete Pump Mobile
Culvert Use Concrete Pump For Sale Best Performance
Concrete Pump For Sale
Pump Rack of Concrete Pump For Sale:
The pump frame of concrete pump with channel steel, Angle steel, steel pipe, steel plate welded together, compact structure, base with φ250 walking rubber wheel, steering wheel, the construction process of easy to move, lightweight, fast.
Parameter of Concrete Pump For Sale:
| Model | GS120-1 | GS120-2 |
| Number of cylinder | 2 | 2 |
| Material cylinder diameter | 120mm | 120mm |
| Air cooler model | AH1012T-CA (AC380) | AH1012T-CA (AC380) |
| Type of Gear Pump | GJ2050/L | GJ2050/L |
| Rated pressure of gear pump | 20 MPa | 20 MPa |
| Maximum outlet pressure | 3 MPa | 3 MPa |
| Theoretical discharge | 7-9 m³/h | 7-9 m³/h |
| Pump lift | 20m | 30m |
| Distance of farthest conveying | 40m | 60m |
| Maximum material diameter | 20mm | 20mm |
| Tank volume | 78 Liter | 78 Liter |
| Dimension size | 1895×726×1300 mm | 1895×726×1300 mm |
| Weight | 700kg | 730kg |
Working process of Concrete Pump For Sale:
First of all, the concrete pump must be parked on flat, solid ground, absolutely not on soft ground, in order to avoid the inclination in the process of work.
Start the main motor for a short time operation, and observe whether the pressure gauge is normal. According to the length of the pipeline, before starting the construction work, we must first pump the water into the pipeline through the pendulum valve to lubricate the pipe wall. Then mortar, and finally concrete, work begins, and often run the test pump empty, with clear water pumping to confirm the smooth pipeline.

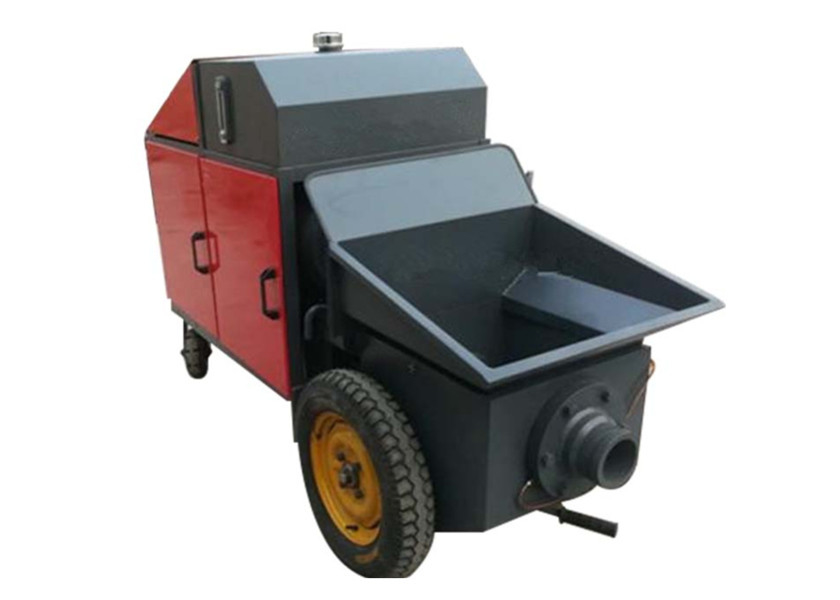

Pictures of Concrete Pump For Sale:
-
