250m3/H Slurry Sand Separator Machine Construction Mining Desander

Basic Properties

Place of Origin: China

Brand Name: Silk

Certification: CE, ISO, BV

Model Number: AST

Trading Properties

Minimum Order Quantity: 1 set

Price: Negotiable

Payment Terms: L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability: 120 sets per month

250m3/H Slurry Sand Separator Machine

Liquid Sand Slurry Separator Mining Desander Construction Equipment Desander Structure of Desander: This desander is mainly composed of box body, box lining board, disc, drive shaft, speed regulating motor, motor seat, chain sprocket, bracket and so on. 1. Screen box: made of different thickness of ...

Product Details

Highlight:

250m3/H Slurry Sand Separator Machine

,

Construction Mining Desander

,

250m3/H sand separating machine

Name: Desander Machine

Color: Yellow Or Customized

Voltage: 380v, 50hz

Slurry Handle Capacity: 250 M3/h

Capacity: 15-90 Ton/Hour

Slurry Sand Rate: ＜2%

Product Description

Liquid Sand Slurry Separator Mining Desander Construction Equipment

Desander

Structure of Desander:

This desander is mainly composed of box body, box lining board, disc, drive shaft, speed regulating motor, motor seat, chain sprocket, bracket and so on.
1. Screen box: made of different thickness of Q345 steel plate welding, with a certain strength and stiffness, is the main part of the screen machine.
2. Lining plate: wear resistant manganese plate, with reinforced bolt connection, easy to replace.
3. Disc: using thickened high manganese material, strong and wear-resistant.
4. Speed regulating motor: see the use and maintenance method of vibration motor manual.
5. Motor base: motor installation, connection screws must be tightened before use, especially three days before the trial of the new sieve machine, must be repeatedly tightened, so as not to loosen the accident.
6. Drive: wear resistant double sprocket chain drive, high transmission efficiency, stable operation, durable.
7. Support: composed of square steel and channel steel, supporting the screen box, the installation of the pillar must be vertical with the ground, the channel below the two pillars should be parallel to each other.

Parameter of Desander:

Model	100-A	100-B	100-C	150-A	150-B	200-A	200-B	250-A	250-B	250-C	250-D
Slurry handle Capacity (m3/h)	80	100	120	150	150	200	200	250	250	250	250
Motor	1kw	8kw	23kw	2.2kw	25kw	3kw	25kw	3kw	25kw	26kw	53kw
Slag screen capacity (Ton/H)	15-26	15-26	15-26	25-50	25-50	25-80	25-80	35-90	35-90	35-90	35-90
After screen max moisture rate	30%	30%	30%	30%	30%	30%	30%	30%	30%	30%	30%
After screen slurry sand rate	＜2%	＜2%	＜2%	＜2%	＜2%	＜2%	＜2%	＜2%	＜2%	＜2%	＜2%
Screen size D50	30 μm	30 μm	30 μm	45 μm	45 μm	60 μm	60 μm	70 μm	70 μm	70 μm	70 μm
Weight (Kg)	800	1500	1800	1600	3500	1800	3300	2000	3600	3600	4800

Advantages of Desander:

1. It can be used in conjunction with the sand washing machine on the sand making production line, or it can be operated independently to improve resource utilization and maximize customer profits.

2. It can effectively reduce the loss of fine sand and control it within 10%, and it can also solve the problems of high fineness modulus of finished sand and low amount of stone powder in stone production.

3. The fine sand in the stone can be fully recovered, the workload of the sedimentation tank is reduced, the cleaning cost is reduced, and the customer's investment cost is low.

4. The fine materials produced in the production can be directly supplied to the market, and the accumulation time is short.

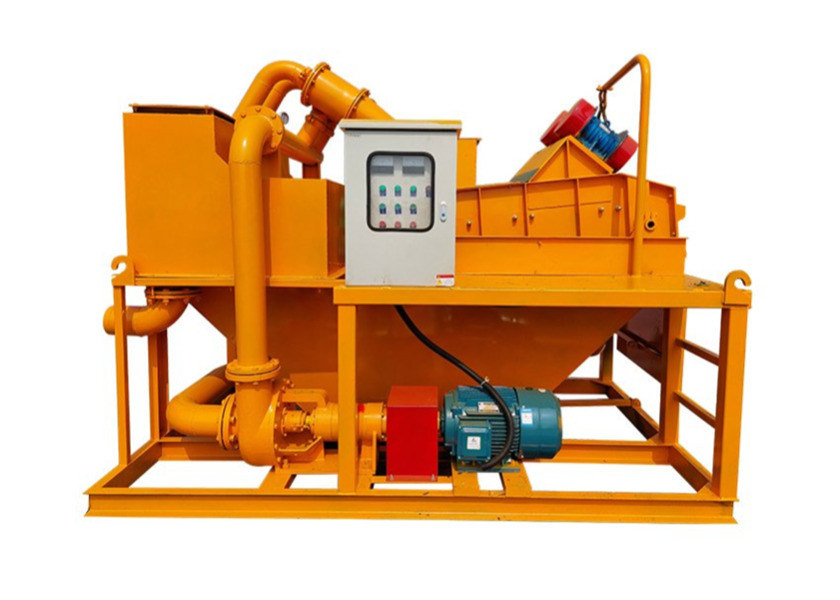

Pictures of Desander:
